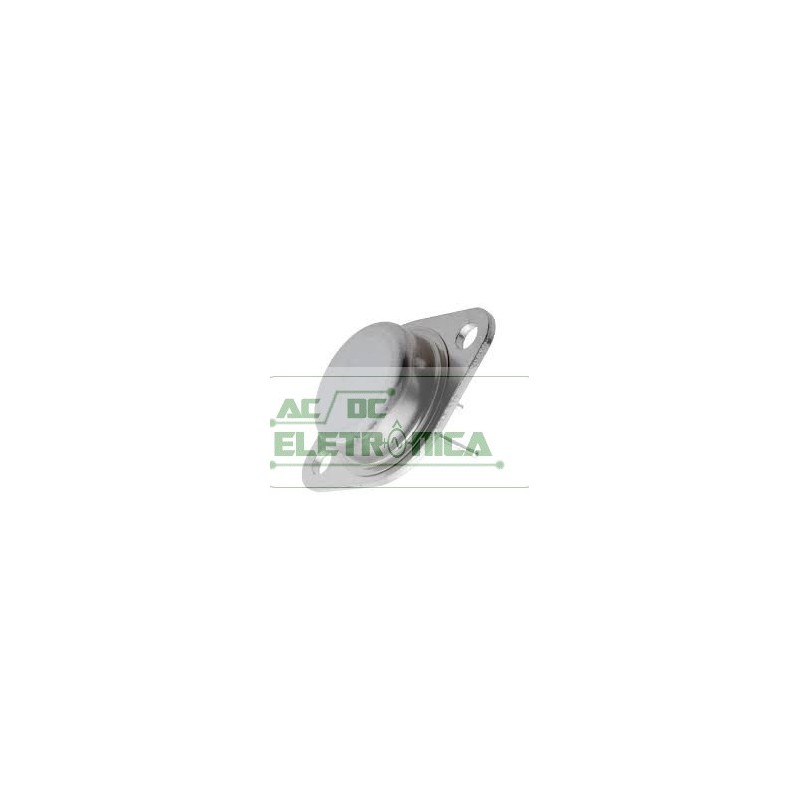

Transistor 2N5038

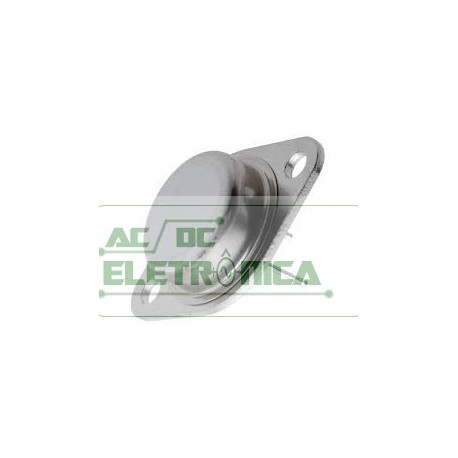

Transistor 2N5038

20 AMPERE
NPN SILICON
POWER TRANSISTORS
90 VOLTS - 140 WATTS
NPN Silicon Transistors
Fast switching speeds and high current capacity ideally suit these
parts for use in switching regulators, inverters, wide-band amplifiers
and power oscillators in industrial and commercial applications.
Features
•High Speed - tf = 0.5 s (Max)
•High Current - IC(max) = 30 Amps
•Low Saturation - VCE(sat) = 2.5 V (Max) @ IC = 20 Amps
•Pb-Free Package is Available*
MAXIMUM RATINGS (Note 1)
Rating Symbol Value Unit
Collector-Emitter Voltage VCEO 90 Vdc
Collector-Base Voltage VCBO 150 Vdc
Collector-Emitter Voltage VCEV 150 Vdc
Emitter-Base Voltage VEBO 7 Vdc
Collector Current - Continuous
Peak (Note 2)
IC
ICM
20
30
Adc
Base Current - Continuous IB 5 Adc
Total Device Dissipation @ TC = 25C
Derate above 25C
PD 140
0.8
W
W/C
Operating and Storage Junction
Temperature Range
TJ, Tstg -65 to +200 C
