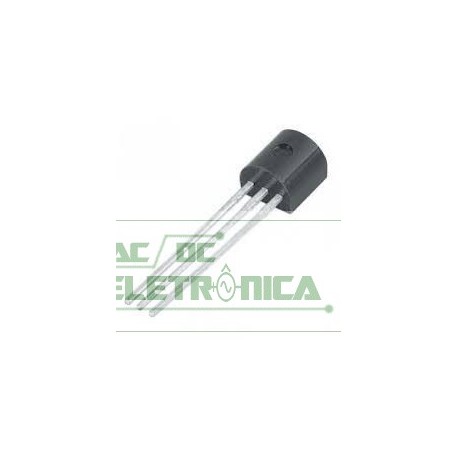

Transistor 2N6027

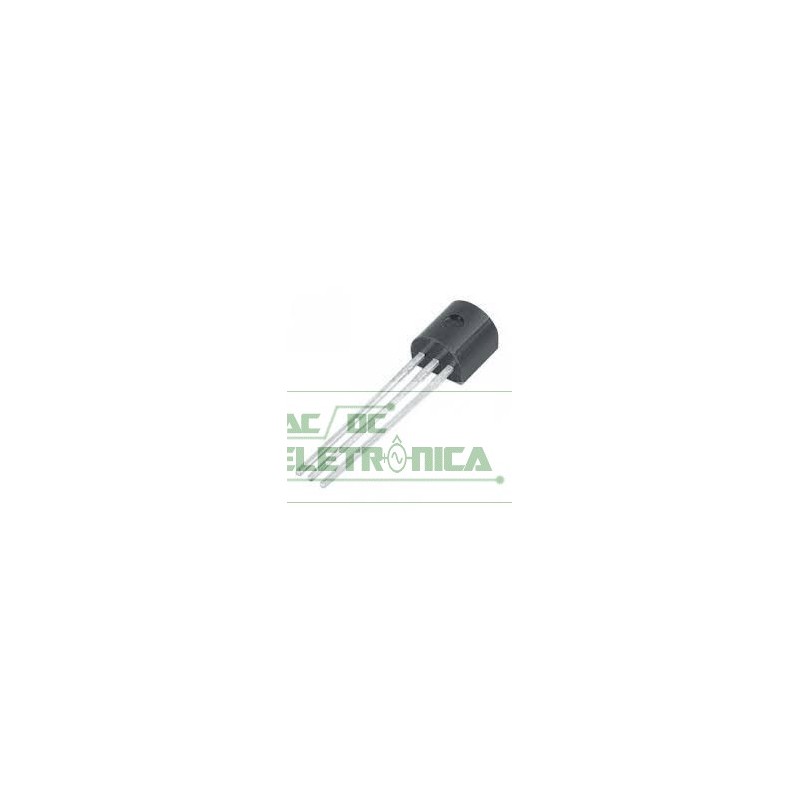

Transistor 2N6027

UTs
40 VOLTS, 300 mW
Programmable
Unijunction Transistor
Programmable Unijunction
Transistor Triggers
Designed to enable the engineer to “program’’ unijunction
characteristics such as RBB, , IV, and IP by merely selecting
two resistor values. Application includes thyristor-trigger, oscillator,
pulse and timing circuits. These devices may also be used in special
thyristor applications due to the availability of an anode gate. Supplied
in an inexpensive TO-92 plastic package for high-volume
requirements, this package is readily adaptable for use in automatic
insertion equipment.
Features
• Programmable - RBB, , IV and IP
• Low On-State Voltage - 1.5 V Maximum @ IF = 50 mA
• Low Gate to Anode Leakage Current - 10 nA Maximum
• High Peak Output Voltage - 11 V Typical
• Low Offset Voltage - 0.35 V Typical (RG = 10 k)
