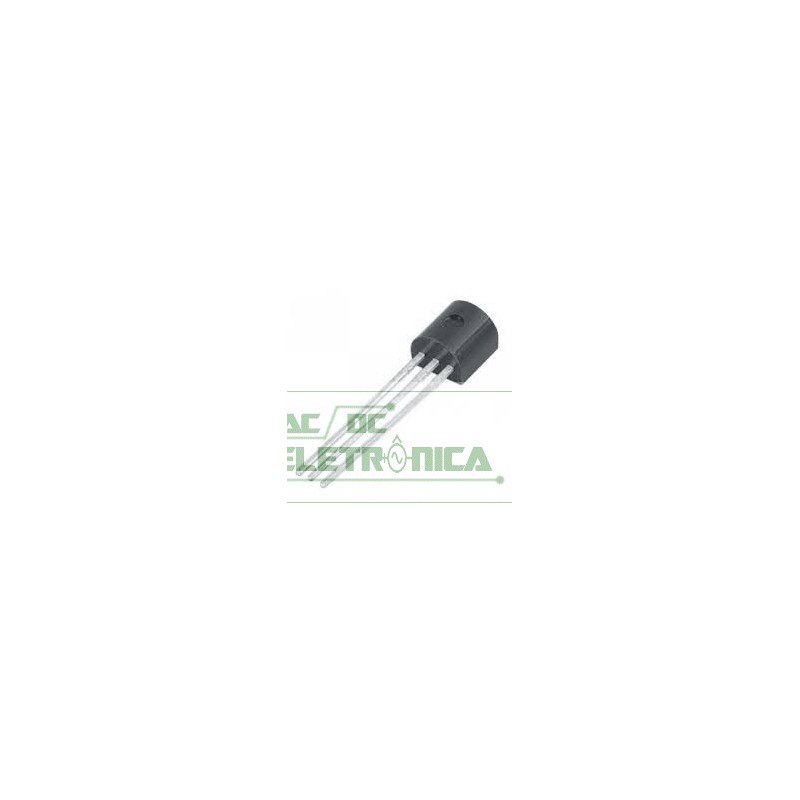

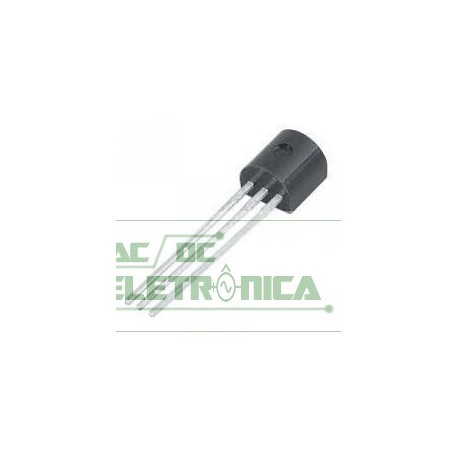

Transistor 2SC1815

Transistor 2SC1815

NPN Audio Frequency General Purpose Amplifier Applications
Driver Stage Amplifier Applications
High voltage and high current: VCEO = 50 V (min),
IC = 150 mA (max)
Excellent hFE linearity : hFE (2) = 100 (typ.)
at VCE = 6 V, IC = 150 mA
: hFE (IC = 0.1 mA)/hFE (IC = 2 mA)
= 0.95 (typ.)
Low noise: NF = 1dB (typ.) at f = 1 kHz
Complementary to 2SA1015 (O, Y, GR class)
