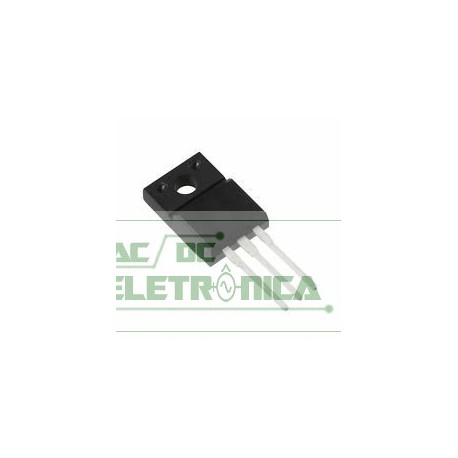

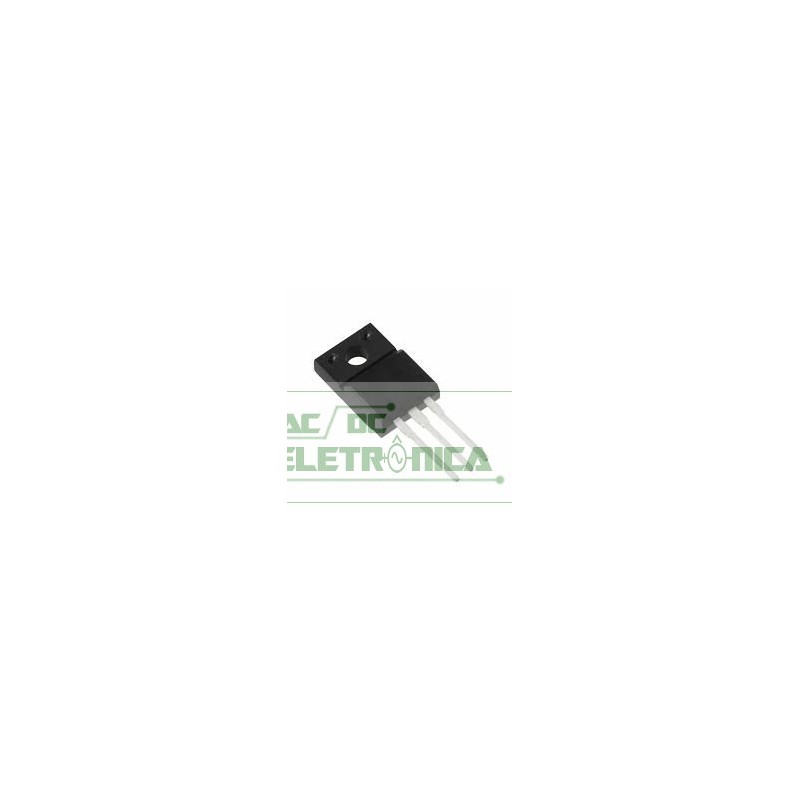

Transistor 2SC3229

Transistor 2SC3229

NPN - Nf/Vid-L 300/300v 0,05A 95mhz

Absolute maximum ratings (Ta=25)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
VCBO Collector-base voltage Open emitter 300 V
VCEO Collector-emitter voltage Open base 300 V
VEBO Emitter-base voltage Open collector 5 V
IC Collector current 100 mA
IB Base current 20 mA
PC Collector power dissipation 2 W
Tj Junction temperature 150
Tstg Storage temperature -55~150
