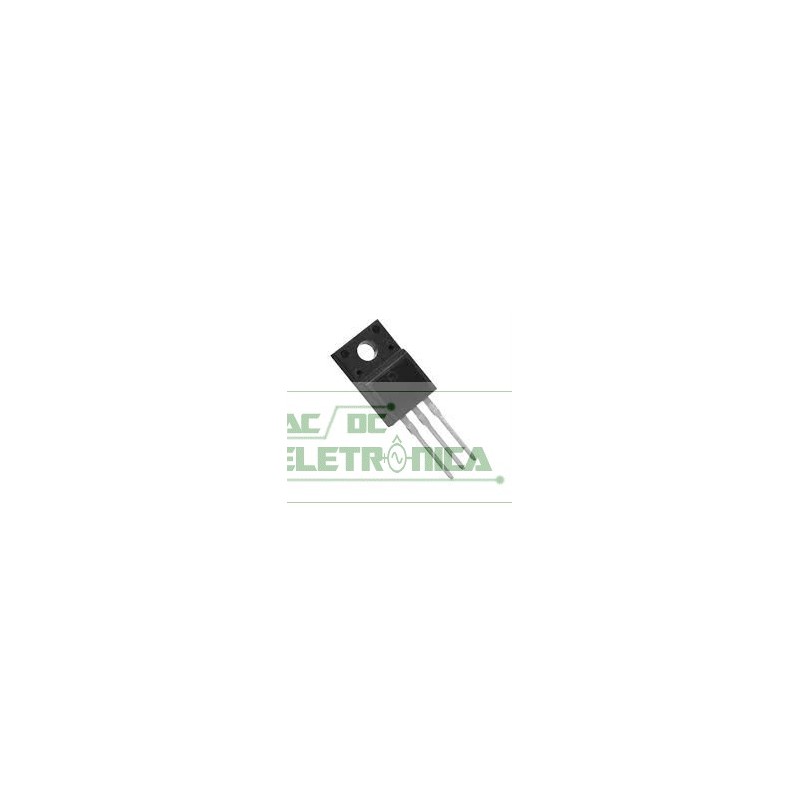

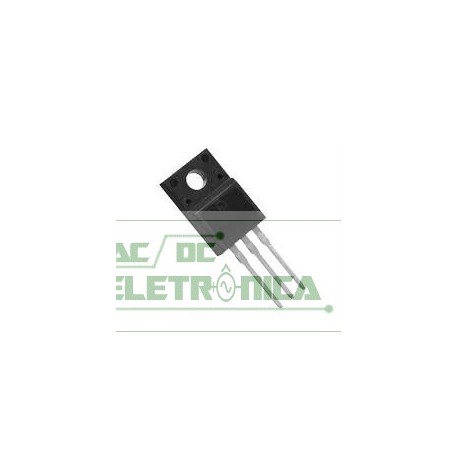

Transistor 2SC5280

Transistor 2SC5280

NPN - Saida horizontal 1500/600v 8A 50w sem diodo
VCBO Collector-base voltage Open emitter 1500 V
VCEO Collector-emitter voltage Open base 600 V
VEBO Emitter-base voltage Open collector 5 V
IC Collector current 8 A
ICM Collector current-peak 16 A
IB Base current 4 A
PC Collector power dissipation TC=25 50 W
Tj Junction temperature 150
Tstg Storage temperature -55~150
