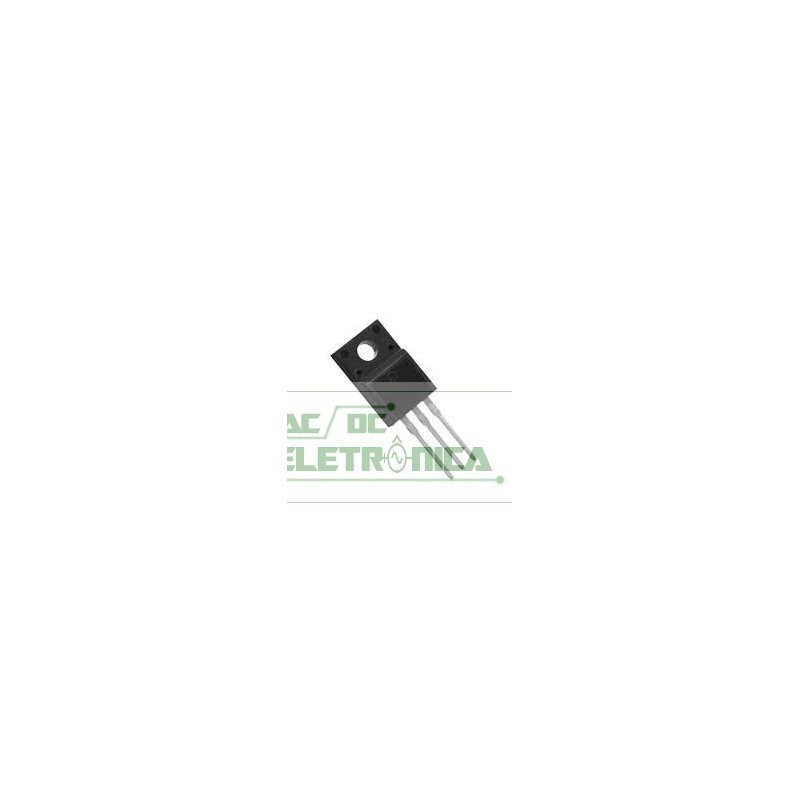

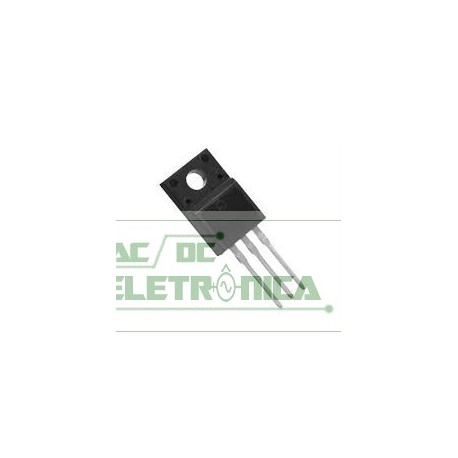

Transistor 2SD1651

Transistor 2SD1651

NPN - Saida horizontal 1500/600v 5A 60w com diodo

VCBO Collector-Base Voltage 1500 V
VCEO Collector-Emitter Voltage 800 V
VEBO Emitter-Base Voltage 6 V
IC Collector Current- Continuous 5 A
ICP Collector Current-Peak 16 A
PC
Collector Power Dissipation
@ TC=25? 60 W
TJ Junction Temperature 150 ?
Tstg Storage Temperature Range -55~150 ?
