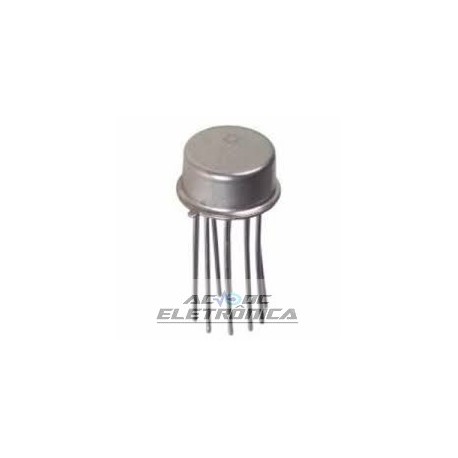

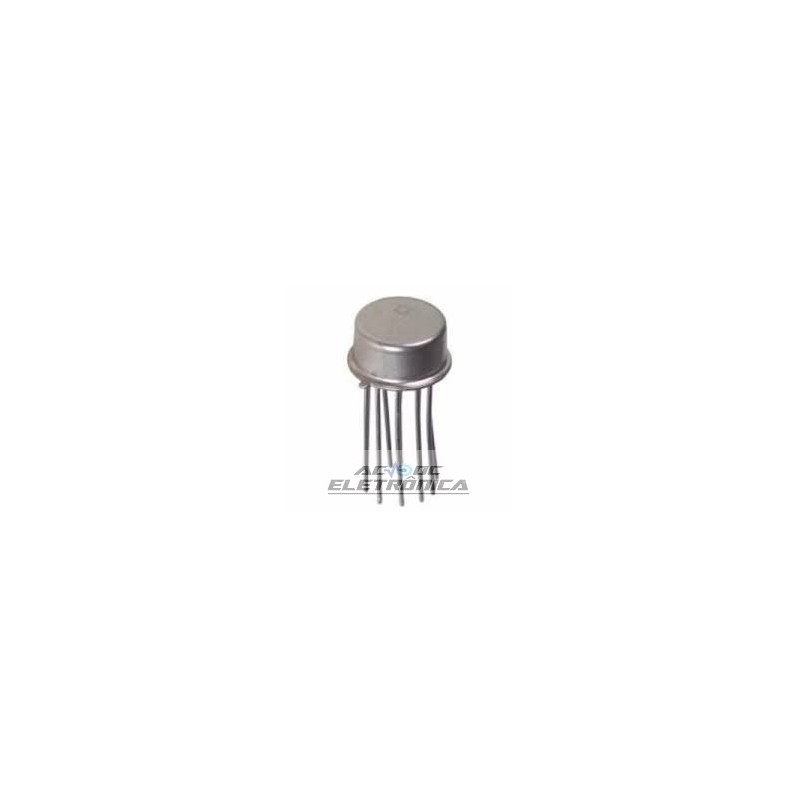

Circuito integrado DG200AB

Circuito integrado DG200AB

CMOS Dual/Quad SPST Analog Switches
The DG200 and DG201 solid state analog gates are designed using an improved, high voltage
CMOS monolithic technology. They provide ease-of-use and performance advantages not previously
available from solid state switches. Destructive latch-up of solid state analog gates has been
eliminated by Harris’ CMOS technology.
The DG200 and DG201 are completely specification and pinout compatible with the industry
standard devices.
