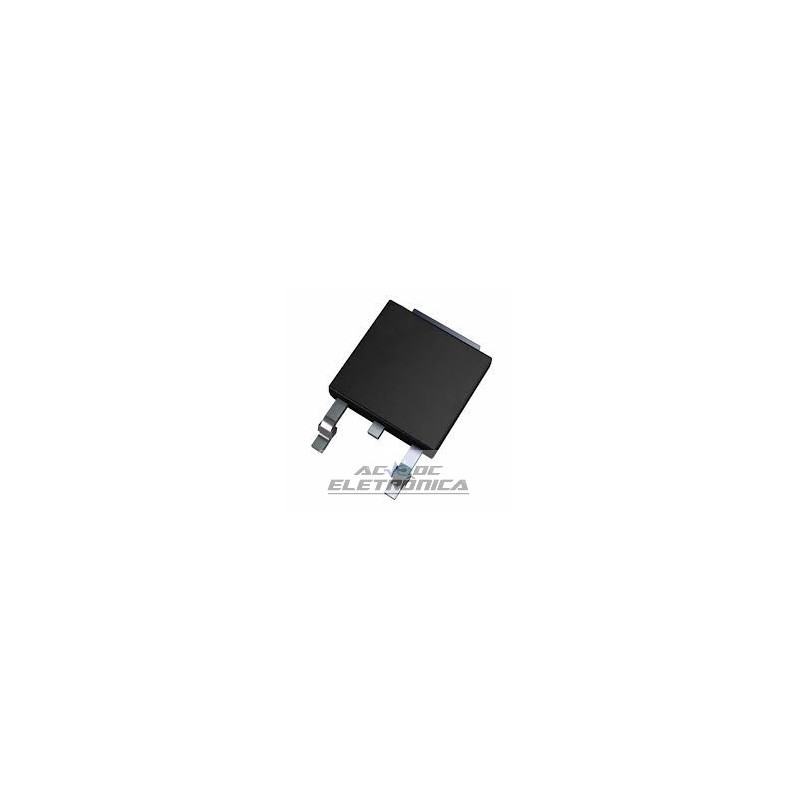

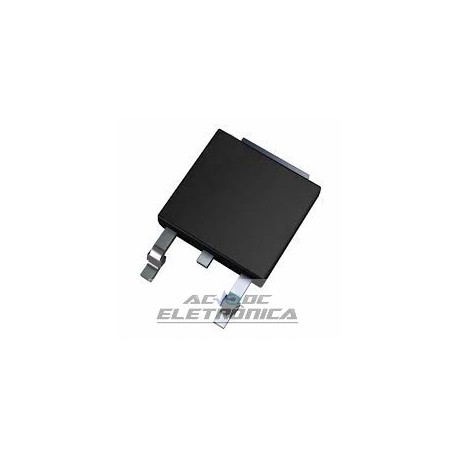

Transistor FDD8447L SMD

Transistor FDD8447L SMD

FET Canal N power Trench 40v 50A 44w 8,5M

FDD8447L
40V N-Channel PowerTrench® MOSFET
40V, 50A, 8.5m?
Features
? Max rDS(on) = 8.5m? at VGS = 10V, ID = 14A
? Max rDS(on) = 11.0m? at VGS = 4.5V, ID = 11A
? Fast Switching
? RoHS Compliant
General Description
This N-Channel MOSFET has been produced using Fairchild
Semiconductor’s proprietary PowerTrench® technology to
deliver low rDS(on) and optimized BVDSS capability to offer
superior performance benefit in the application.
Applications
? Inverter
? Power Supplies
