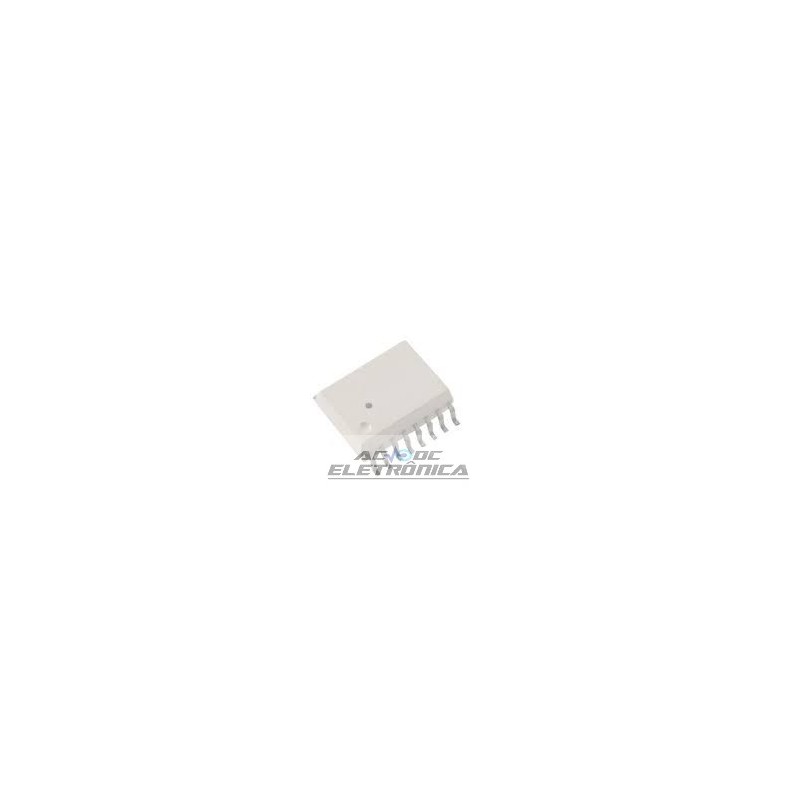

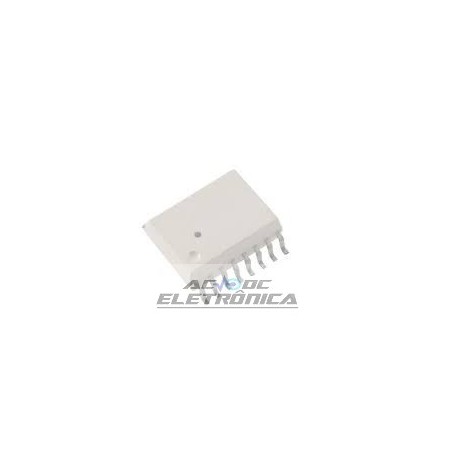

Circuito integrado HCPL316J - A316J

Circuito integrado HCPL316J = A316J

Acoplador Óptico de Acionamento de 2.0 Amp com Detecção de Desaturação Integrada (VCE) e Feedback do Status da Falha
Features
• Drive IGBTs up to
IC = 150 A, VCE = 1200 V
• Optically Isolated, FAULT
Status Feedback
• SO-16 Package
• CMOS/TTL Compatible
• 500 ns Max. Switching
Speeds
• “Soft” IGBT Turn-off
• Integrated Fail-Safe IGBT
Protection
– Desat (VCE) Detection
– Under Voltage Lock-Out
Protection (UVLO) with
Hysterisis
• User Configurable:
Inverting, Non-inverting,
Auto-Reset, Auto-Shutdown
• Wide Operating VCC Range:
15 to 30 Volts
• -40°C to +100°C Operating
Temperature Range
• 15 kV/µs Min. Common Mode
Rejection (CMR) at
VCM = 1500 V
• Regulatory Approvals: UL,
CSA, IEC/EN/DIN EN 60747-
5-2 (891 Vpeak Working
Voltage)
