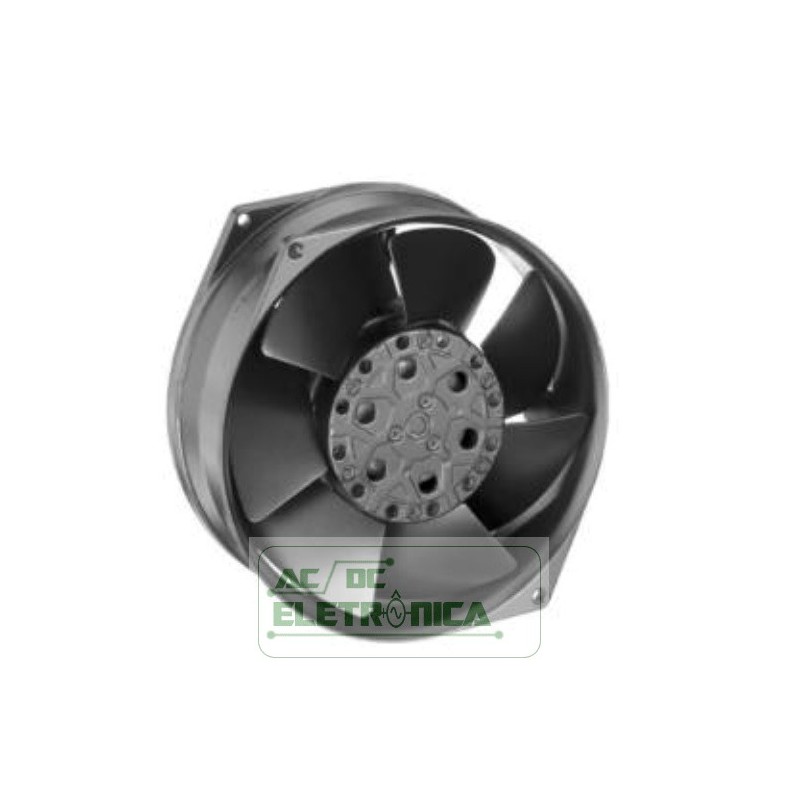

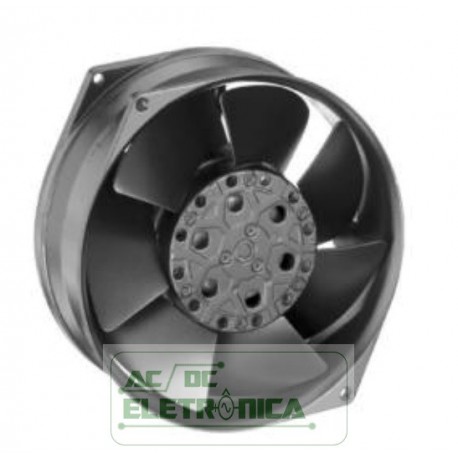

Ventilador axial 130mm 115vac - W2S130-AA25-01 - ebmpapst

Ventilador axial 130mm 115vac - W2S130-AA25-01 - ebmpapst

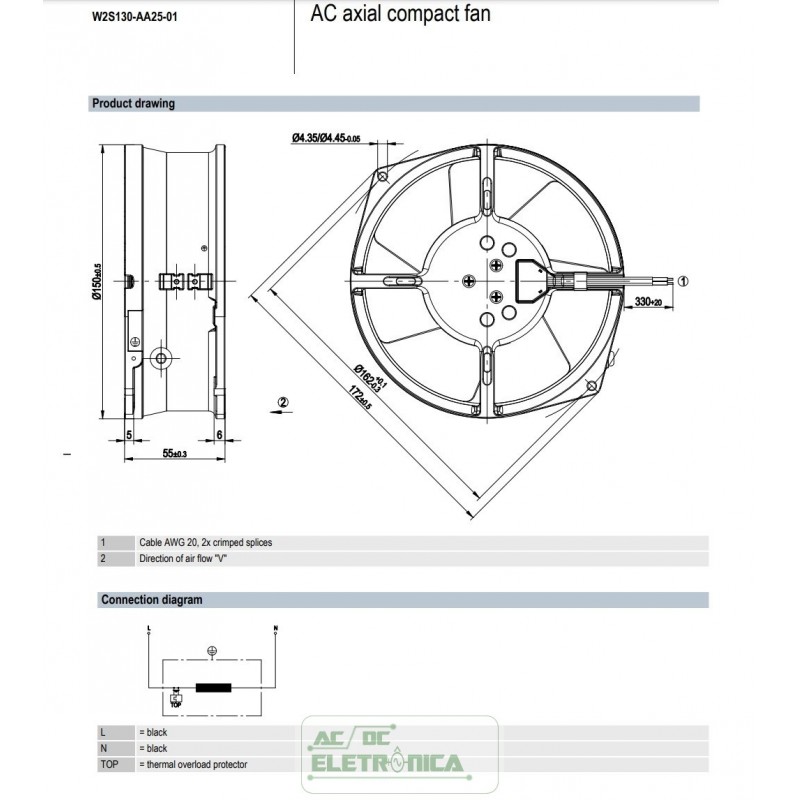

Type W2S130-AA25-01
Motor M2S052-CA
Phase 1~ 1~
Nominal voltage VAC 115 115
Frequency Hz 50 60
Method of obtaining data fa fa
Valid for approval/standard CE CE
Speed (rpm) min-1 2800 3250
Power consumption W 41 38
Current draw A 0.56 0.47
Max. back pressure Pa 80 120
Max. back pressure inH2O 0.32 0.48
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 50 70
Weight 1.1 kg
Fan size 130 mm
Rotor surface Rotor open, painted black
Impeller material Sheet steel, painted black
Housing material Die-cast aluminum, painted black
Number of blades 7
Airflow direction "V"
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP20
Insulation class "B"
Max. permitted ambient temp.
for motor (transport/storage)
+ 80 °C
Min. permitted ambient temp. for
motor (transport/storage)
- 40 °C
Installation position Any
Condensation drainage holes None, open rotor
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system)
< 0.75 mA
Motor protection Thermal overload protector (TOP) internally connected
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1; CE
Approval UL 507; CCC; VDE; EAC; CSA C22.2 No. 113
