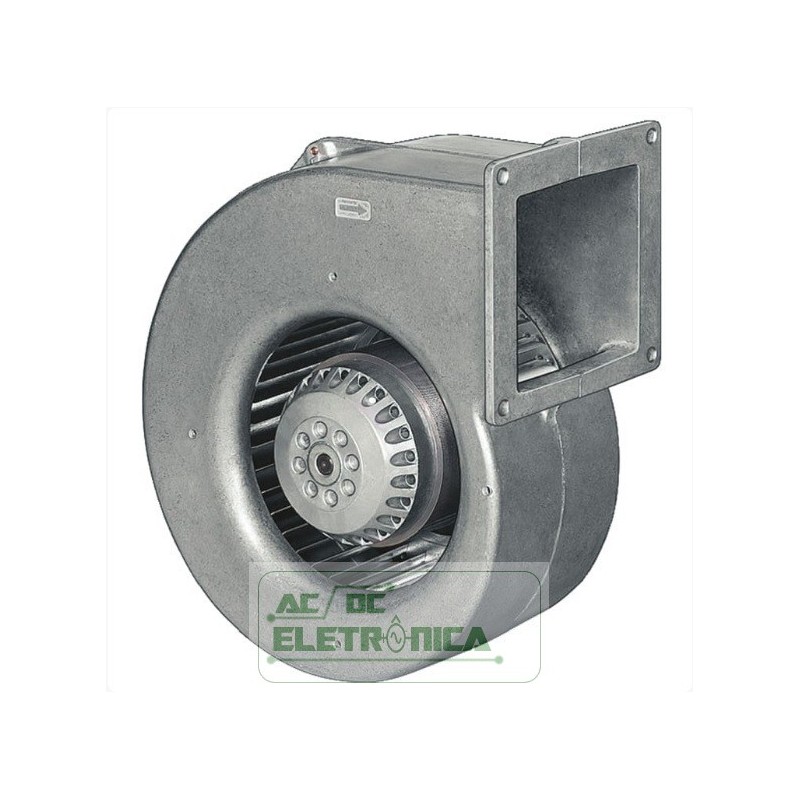

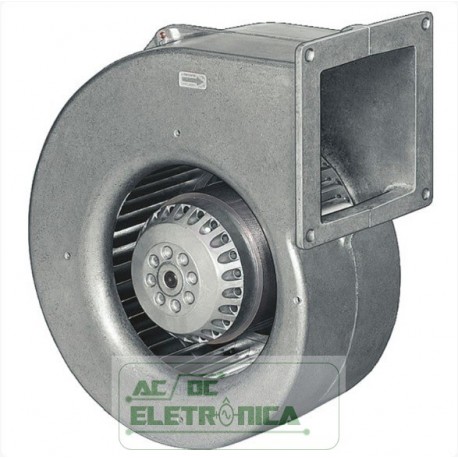

Ventilador centrífugo 180mm 230vac - G2E180-EH03-01 - ebmpapst

Ventilador centrífugo 180mm 230vac - G2E180-EH03-01 - ebmpapst

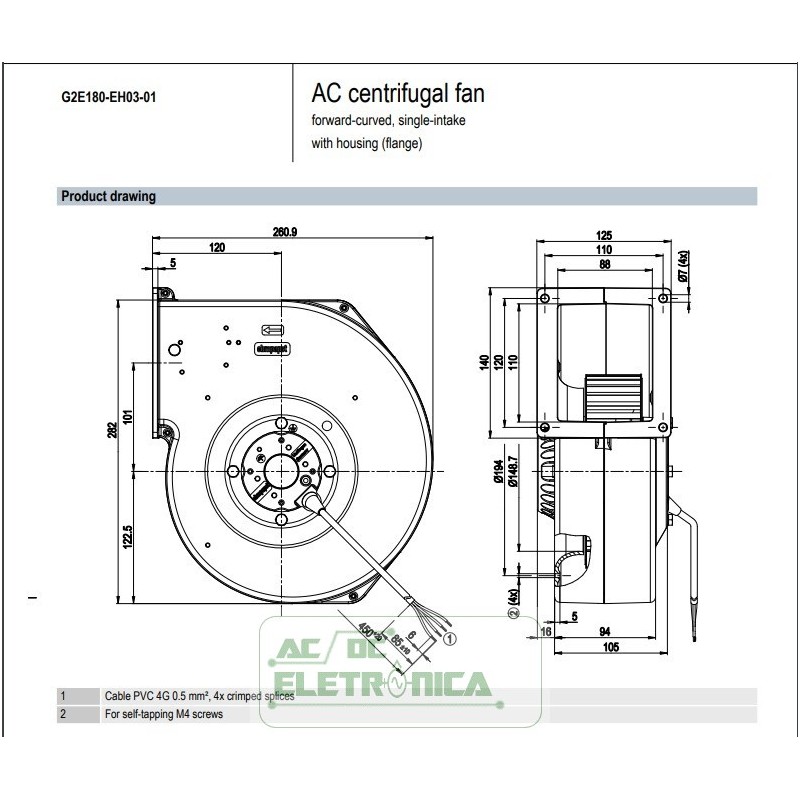

283 x 261 x 125mm, 755m³/h, 230 V ac

Type G2E180-EH03-01 Motor M2E074-EI Phase 1~ 1~ Nominal voltage VAC 230 230 Frequency Hz 50 60 Method of obtaining data fa ml Valid for approval/standard CE CE Speed (rpm) min-1 1950 2150 Power consumption W 400 415 Current draw A 1.75 1.82 Capacitor µF 8 8 Capacitor voltage VDB 400 400 Capacitor standard S0 (CE) S0 (CE) Min. back pressure Pa 0 250 Min. back pressure in. wg 0 1 Min. ambient temperature °C -25 -25 Max. ambient temperature °C 40 30 Starting current A 2.2 2
