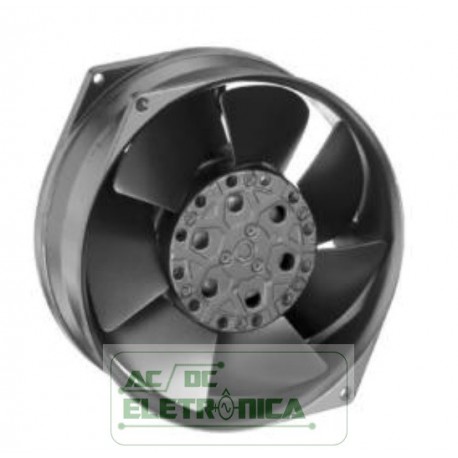

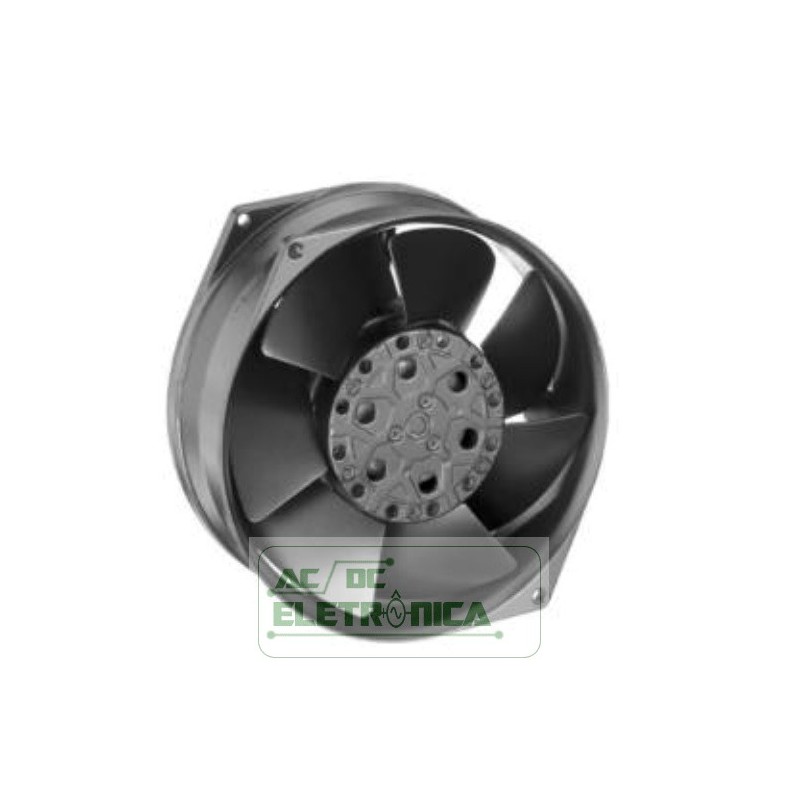

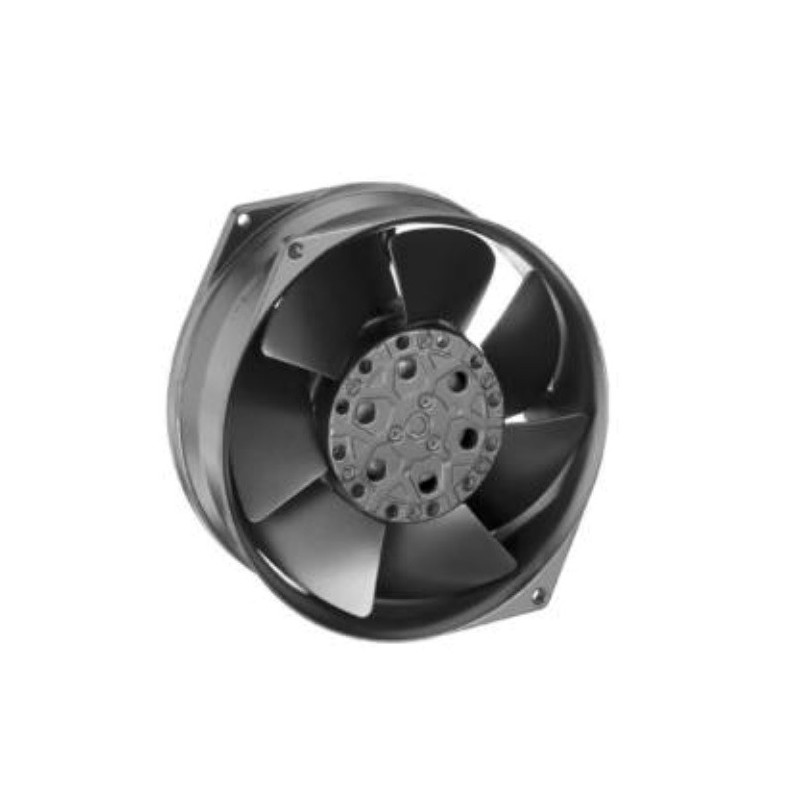

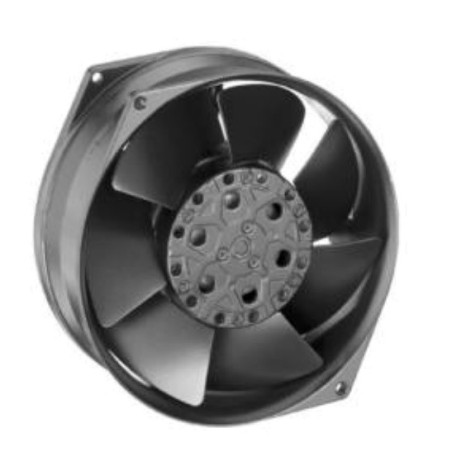

Ventilador axial 130mm 115vac - W2S130-AA25-C3 - ebmpapst

Ventilador axial 130mm 115vac - W2S130-AA25-C3 - ebmpapst

Type W2S130-AA25-01 - thermally protected

Motor M2S052-CA

Phase 1~ 1~

Nominal voltage VAC 115

Frequency Hz 50 60

Method of obtaining data fa fa

Valid for approval/standard CE

Speed (rpm) min-1 2800 3250

Power consumption W 41 38

Current draw A 0.56 0.47

Max. back pressure Pa 80 120

Max. back pressure inH2O 0.32 0.48

Min. ambient temperature °C -25 -25

Max. ambient temperature °C 50 70

Weight 1.1 kg

Fan size 130 mm

Rotor surface Rotor open, painted black

Impeller material Sheet steel, painted black

Housing material Die-cast aluminum, painted black

Number of blades 7

Airflow direction "V"

Direction of rotation Counterclockwise, viewed toward rotor

Degree of protection IP20

Insulation class "B"

Max. permitted ambient temp.

for motor (transport/storage)

+ 80 °C

Min. permitted ambient temp. for

motor (transport/storage)

- 40 °C

Installation position Any

Condensation drainage holes None, open rotor

Mode S1

Motor bearing Ball bearing

Touch current according to IEC

60990 (measuring circuit Fig. 4,

TN system)

< 0.75 mA
