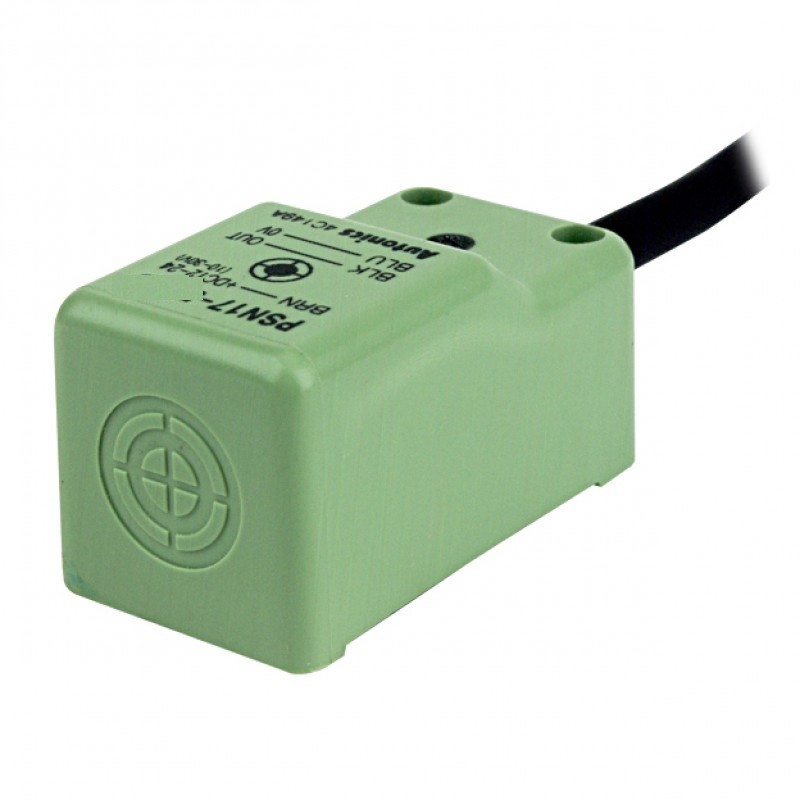

Sensor indutivo retangular 8mm PSN17-8DN2 - Autonics

Sensor de proximidade capacitivo 24Vcc PSN17-8DN2 Autonics

NPN NF

Wire type and power DC 3-wire type 12-24VDC

Sensing side size Frame size 17mm

Sensing distance 8mm

Standard sensing target 25×25×1mm(iron)

Response frequency 200Hz

Current specification Current consumption: Max. 10mA

Control output NPN Normally Closed

Sensing type Standard type(front sensing type)

Material Heat-resistant ABS

Protection structure IP67

Environment_Ambient temperature -25 to 70?, storage: -30 to 80?

Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH

Hysteresis(distance) Max. 10% of sensing distance

Weight ˜ 62g (˜ 83g)
