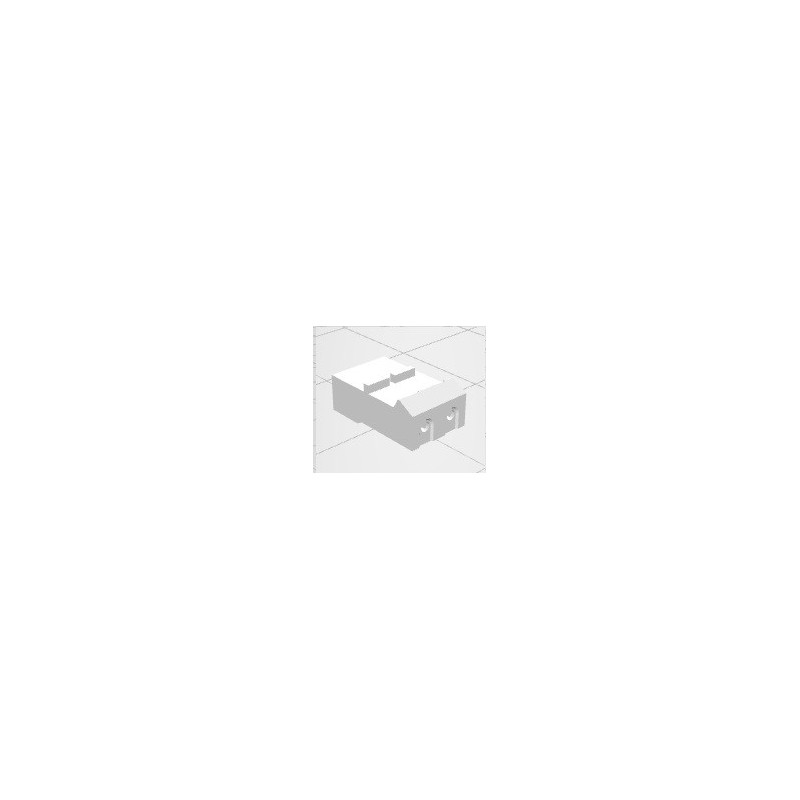

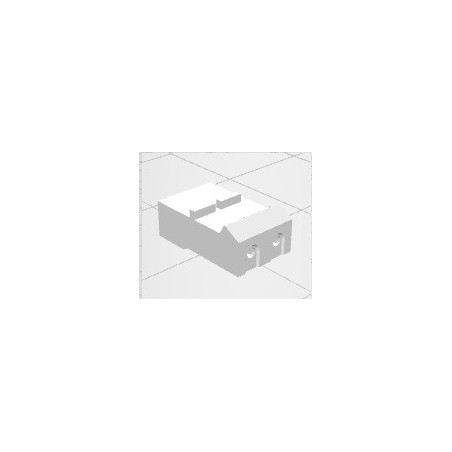

Conector 02 vias femea 508902HA 5,0mm

Conector 02 vias femea 508902HA passo 5,0mm Excon

Terminal compativel 5090TC051

UL Approval: E237407 Section.7

Type: Housing

Pitch: 5.00 mm (0.197?)

Contact Type: Wire to Board

Series: 5089

Current rating: 9A AC / DC

Voltang rating: 250V AC / DC

Withstand voltage: 1000V AC / minute

Insulation resistance : 000M O min

Contact resistance: 10m O max

Temperature range -25? to + 105° (including temperature rise)

Applicable PC board thickness 1.0 ~ 1.6 mm (0.039? to 0.063?)

Circuits: 01 – 15P

Material: Nylon 66 UL 94V-0
