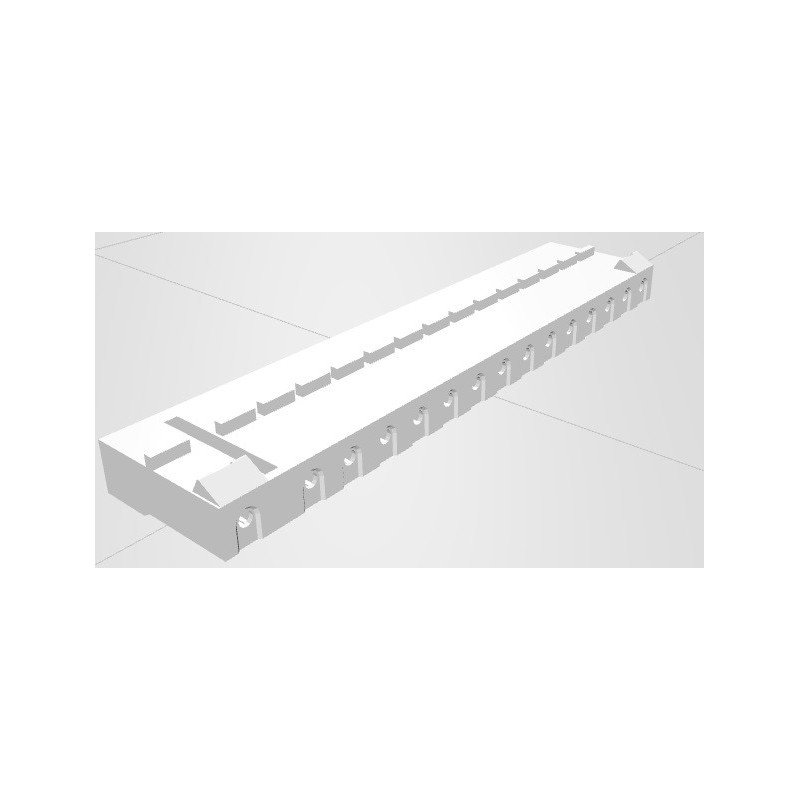

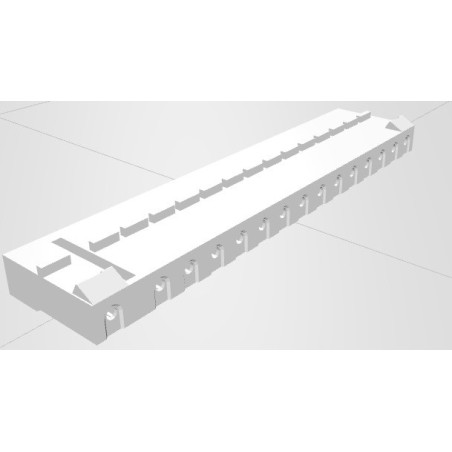

Conector 15 vias femea 509015HA - 7.5/5.0mm

Alojamento femea 15 vias passo 7.5/5.0mm

509015HA Excon

8655-15 Molex

Terminal compativel 5090TC051 Excon

UL Approval: E237407 Section.7

Type: Wafer

Pitch: 7.5-5.0 mm (0.295-0.197°)

Contact Type: Wire to Board

Series: 5090

Current rating: 9A AC / DC

Voltang rating: 250V AC / DC

Withstand voltage: 1000V AC / minute

Insulation resistance: 1000M O min

Contact resistance: 10m O max

Temperature range -40° to + 105° (including temperature rise)

Applicable PC board thickness 1.0 ~ 1.6 mm (0.039º to 0.063º)

Circuits: 01 – 15P

Material: Nylon 66 UL 94V-0
