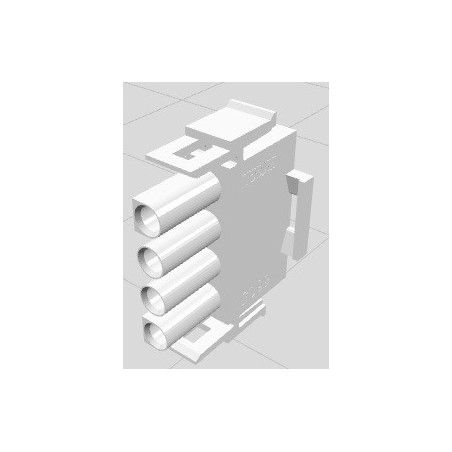

Conector 04 vias macho hylok 6,35mm 660504HM - Excon

Conector 04 vias macho hylok 6,35mm 660504HM - Excon

Referencias:

6605HM04 Excon -

MML-04PH 4x1 - Metaltex

UL Approval: E237407 Section.5

Type: Housing

Pitch: 6.35 mm (0.250?)

Contact Type: Wire to Board & Wire to Wire

Series: 6605

Current rating: 5A AC / DC

Voltang rating: 600V AC / DC

Withstand voltage: 1500V AC / minute

Insulation resistance : 1000M O min

Contact resistance: 10m O max

Temperature range -40° to + 105° (including temperature rise)

Applicable panel thickness: 1.0 ~ 1.6 mm
